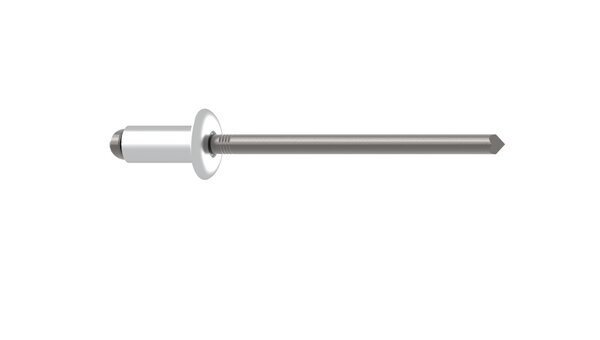

Blind rivets alu/steel dome head 4 x 8

Articlenumber: 1433486
EAN-Code: 4007081300445
  • Head diameter
    8,00 mm
  • Head shape
    Dome head

Blind rivets alu/steel dome head 4 x 8

You can buy this product at the following online shops.

Please click on a logo and you will directly linked to the online shop.

Advantages in detail

Advantages in detail

Blind rivets alu/steel dome head 4 x 8

Aluminium, steel or even lacquered or anodised, the standard range offers the right material combination and dimension for every application. GESIPA standard blind rivets are available in a wide variety of designs, materials, shapes, lengths and colours. Depending on the task a blind rivet is to fulfil, GESIPA offers a choice between a standard model available from stock or a blind rivet specially designed for an application.

Technical specifications

Technical specifications

Blind rivets alu/steel dome head 4 x 8

Technical specification fasteners
Rivet body length 8,00 mm
Hole diameter 4,10 mm
Head diameter 8,00 mm
Mandrel diameter 2,10 mm
Rivet body diameter 4,00 mm
Shear strength 1.400 N
Tensile strength 2.000 N
Material rivet body Aluminium alloy
Material mandrel Steel, zinc-plated
Head shape Dome head
Packaging
Weight with packaging and accessories 1,6210 g

Responsible manufacturer

SFS Group Germany GmbH
Industrial End Markets – GESIPA®
Nordendstr. 13-39
DE-64546 Mörfelden-Walldorf
+49 6105 962-0
info_ett_@gesipa_dot_.com
